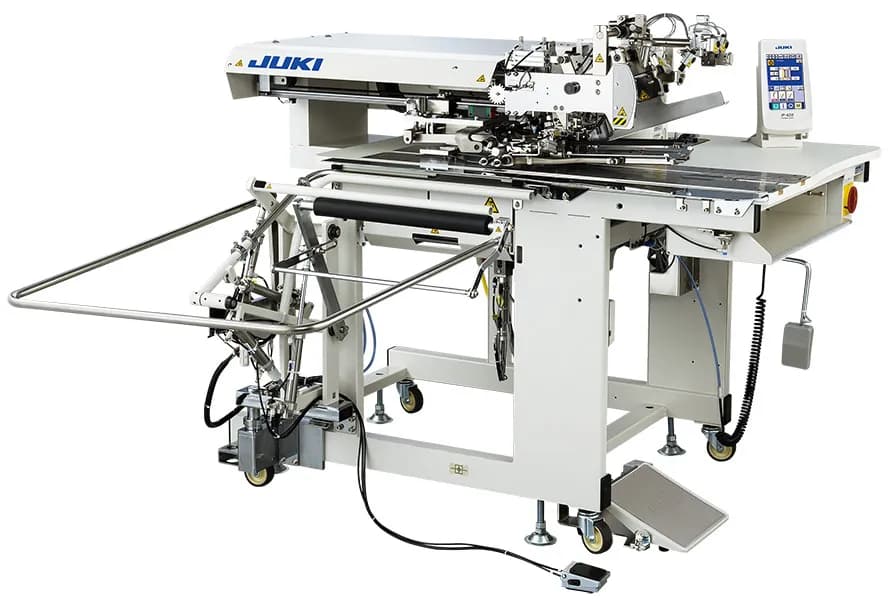

APW-895N

Lockstitch, Automatic Welting Machine

Machine time is reduced to provide increased productivity. This is the automatic sewing machine which is ideally suited for sewing straight pockets with flaps

For straight pockets with flaps

Contact/Inquiry

See Specification

Sewing Speed

3.000

sti/min

2,5 mm

stitch length

Product overview

Product overview

The machine suports the sewing of straight pockets (with flaps) on suits, jackets and pants. Double-/single-welt sewing can be changed over by the simple touch of the key on the operation panel. The direct-drive motor, which transfers the motor power to the machine with no energy loss, not only offers economical benefits due to the power reduction, but also reduces the machine's vibration and operating noise, thereby helping reduce operator fatigue.

Increased sharpness of the center knife

An independently driven (speed can be changed) stepping motor is adopted for the center knife.

The center knife therefore remains unaffected by the sewing speed and cuts more sharply and cleanly. In addition, the knife shape is improved to prevent bending and demonstrates increased sharpness when an elastic material is being sewn.

Increased productivity

In addition to the high-speed machine head with a maximum speed of 3,000 sti/min, faster movement (jump and forwarding) of the clamp foot achieves a shorter machine time.

Power consumption is substantially reduced

The reduced energy consumption of the APW-895/896 ensures superior power-conservation and cost effectiveness. The adoption of a direct-drive system (compact AC servomotor) with superb energy-transfer properties cuts the average power consumption by 75% compared with the forerunner of the APW-895. The power consumption during standby is reduced by as much as 90%.

The corner knives are easily adjustable

The corner knives, which can be drawn out in the entire knife unit is adopted. The knives are easily adjusted and can also be changed with ease. The slim corner knife cover helps reduce material thrusting, thereby achieving material cutting with accuracy.

Time required for setup changing is substantially shortened

1. The machine is equipped with a simple gauge changing mechanism which enables the changing and adjustment of the position of the hook driving shaft saddle from the top of the bed without tilting the machine head. The time required to change a needle gauge is less than a half of that required by conventional machines.
2. The position of the folding plate and needle does not change even when double-/single-welt sewing is changed over. This means that the folding plate does not need any adjustment.
3. The machine is provided as standard with a micro-adjusting function for adjusting the clamp foot position. This enables djboth accurate and quick adjustments of the welting width.ustments of the welting width.

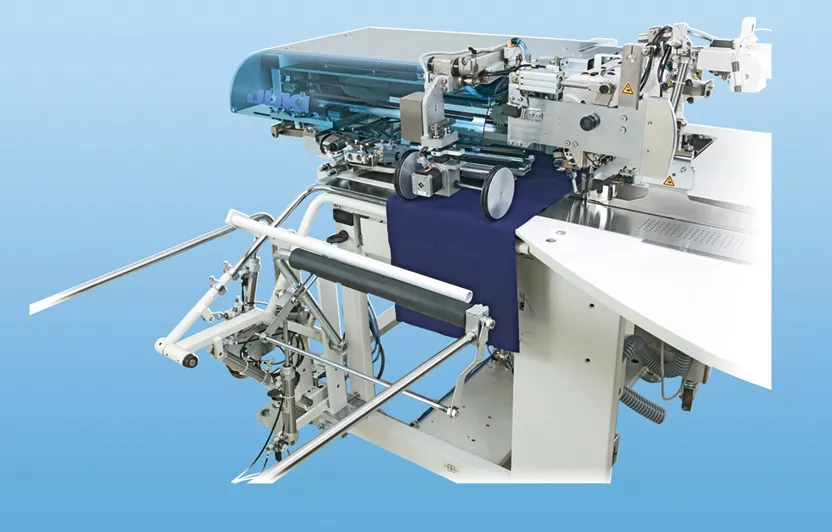

Newly developed stacker which is able to handle small articles

Two kinds of stackers are available; i.e., clamp bar stacker (SP-46) and roller stacker (SP-47). With the stacker, the machine is able to handle materials with a shortest distance of 250 mm from its edge to the pocket. A stacking sensor is also provided as ard to preventstandard to prevent stacking errors. stacking errors.
