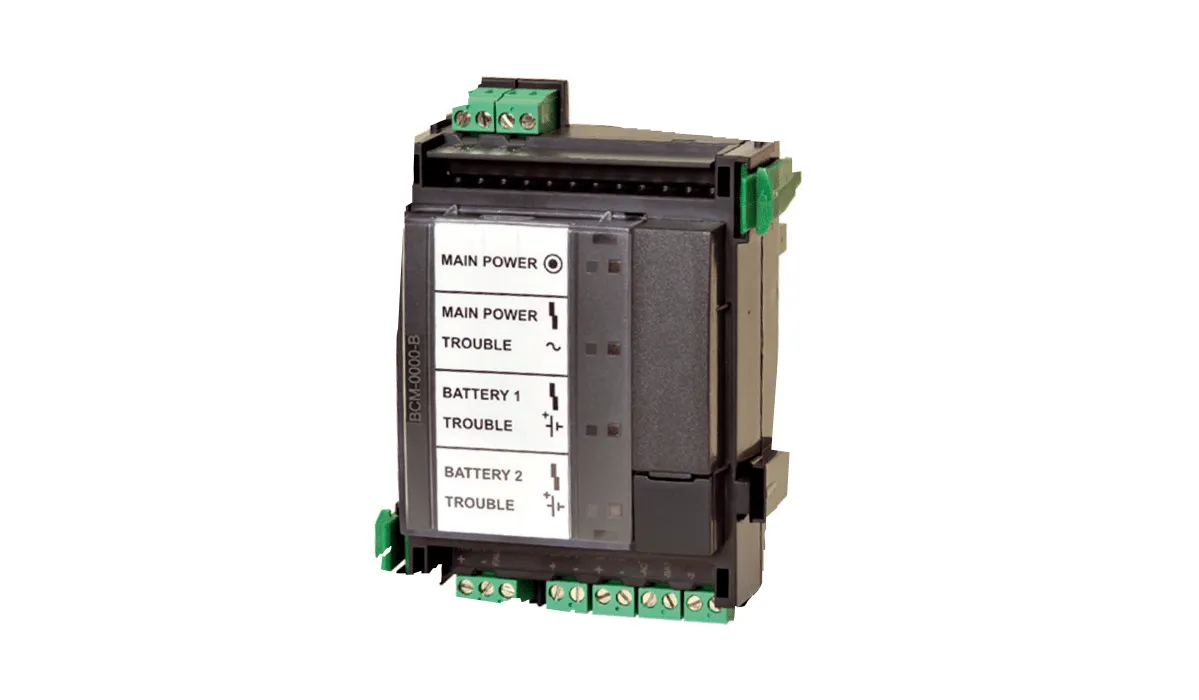

Battery Controller Module – BCM-0000-B Bosch

248,82€ *VAT included*

Battery Controller Module

SKU: BCM-0000-B

Battery Controller Module – BCM-0000-B Bosch

The BCM Battery Controller Module-0000-B monitors the power supply of the entire control panel.

Control the charge of up to four batteries (of 12 V / 24 Ah a 12 V/26 Oh the one of 12 V / 36 Ah a 12 V / 45 Ah).

The load is driven according to temperature and time.

The key has three functions, depending on the status of the battery controller module:

The module LED test is activated by pressing the key.

The key starts charging the batteries if their voltage is between 18 V y 21 V.

Mains power supply required.

The resetting of the 24 V. If an error occurs, the output will be deactivated.

Two voltage outputs 2,8 A a 24 V each of them.

Control and charging of batteries with temperature control, according to EN 54‑4:1997/A2:2006.

System ready to go, thanks to its technology “plug-and-play” and to pluggable terminal blocks.

Dimensions Approx. 127 x 96 x 60 mm (5 x 3,8 x 2,4 in.)

Weight Without packaging Approx. 195 g (6,9 ounces). With packaging Approx. 340 g (12 ounces).
