Industrial Sewing Machine Looper Holder ASM.,Right B2006-380-0A0 With Screw For Juki MH380 Double-Needle

Product sellpoints

Specifications

1. High-concerned chemical
2. None
3. Stitch Length
4. 1
5. Max. Sewing Thickness
6. 1
7. Max. Sewing Speed
8. 1
9. Model Number
10. B2006-380-0A0
11. Feed Mechanism
12. Walking Foot
13. Mechanical Configuration
14. Flat-Bed
15. Stitch Formation
16. Lock Stitch
17. Type
18. Industrial Sewing Machine
19. Brand Name
20. onloyo
21. Origin
22. Mainland China

Description

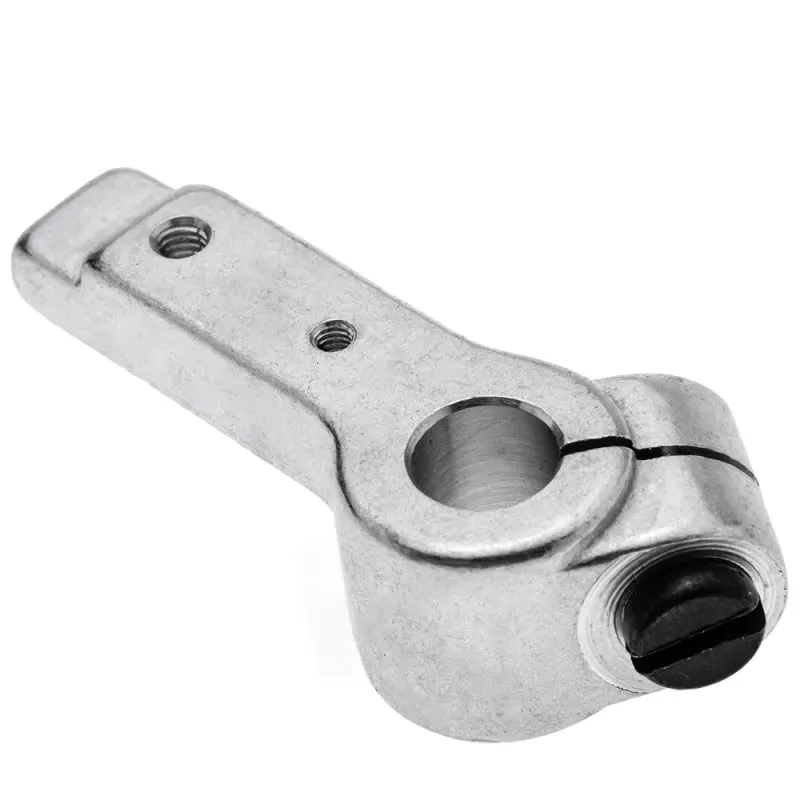

Part #: B2006-380-0A0 Looper Holder ASM., Right

The Juki MH380 is a powerhouse in the industrial sewing world, renowned for its double-needle capability and heavy-duty construction. However, like any high-performance machine, it requires precise maintenance to sustain its speed and durability. The ASM (Auto Sewing Machine) Looper Holder, specifically the Right B2006-380-0A0 model with screw, is not merely a spare part; it is the critical component that ensures the looper hook operates smoothly, preventing skipped stitches and thread breakage. When you are working with the Juki MH380 or similar models like the MS 1190, having the correct ASM 380 component is essential for maintaining the integrity of your production line. This part fits seamlessly into the mechanism, ensuring that the looper arm moves with the exact precision required for double-needle stitching. Whether you are repairing a machine that has stopped mid-shift or upgrading a worn-out unit, this specific part is the solution you need. It is designed to match the intricate tolerances of the Juki MH 380, ensuring that the looper hook engages correctly with the needle bar.

What is the Critical Role of the ASM Looper Holder in Juki MH380 Performance?

The ASM Looper Holder is the heart of the looper mechanism in the Juki MH380. Its primary function is to hold the looper hook in a fixed position while allowing it to rotate freely during the stitching cycle. Without this precise holder, the hook would wobble, leading to inconsistent stitch length, skipped stitches, and eventually, machine damage. The B2006-380-0A0 part number indicates a specific revision designed for the Right side of the machine, which is crucial because the left and right mechanisms are often mirror images in terms of orientation and mounting. If you are looking at the Juki MS 1190 parts book for reference, you will find that the MH 380 shares many commonalities, but the ASM 380 component is unique to this series. The screw included in this kit ensures a secure fit, preventing the holder from loosening under the high vibration and stress of continuous industrial operation. A loose holder can cause the looper hook to hit the needle bar, resulting in catastrophic damage to the needle plate or the hook itself. Therefore, selecting the correct ASM 380 part is not just about fitting; it is about preserving the machine's lifespan and output quality.

Why Precision Matters in the Looper Holder

The looper hook works in tandem with the needles to form the lockstitch. In a double-needle setup, two sets of threads must be interlocked simultaneously. The ASM holder ensures that the looper hook travels the correct distance and at the correct speed relative to the needle bar. If the holder is misaligned or damaged, the timing of the looper action shifts. This shift causes the thread to loop incorrectly, leading to loose loops on the underside of the fabric or, worse, the thread cutting itself. In an industrial setting, where a single minute of downtime can cost hundreds of dollars in lost production, the reliability of this small component is paramount. The B2006-380-0A0 part is engineered with hardened materials to resist wear, ensuring that the looper hook maintains its shape and function even after thousands of cycles. This durability is what separates a high-quality replacement part from a generic, inferior alternative.

How to Identify the Correct ASM 380 Part for Your Juki MH380 Machine

Identifying the right replacement part is the most common challenge when maintaining industrial sewing machines. The confusion often arises because Juki produces many similar models, such as the MH 380, MH 380D, and the MS 1190, which share some internal components but have distinct ASM requirements. The part number B2006-380-0A0 is your definitive guide. It explicitly states that this is the ASM holder for the MH 380 series. If you are consulting the Juki MS 1190 parts book, you must cross-reference the model number carefully. While the MS 1190 is a heavy-duty model, the ASM holder for the MH 380 is specific to that chassis. Using the wrong part, such as an ASM holder from a different series, can lead to improper installation and immediate failure. The Right designation in the title is equally important; installing a Left-side holder on the Right side of the machine will result in the looper hook moving in the wrong direction, rendering the machine unusable. Always verify the part number against the machine's nameplate before purchasing. The inclusion of the screw in the B2006-380-0A0 kit simplifies the installation process, as you do not need to source a separate fastener, reducing the risk of using an incompatible screw size.

Verifying Compatibility Before Installation

Before you proceed with the installation, perform a visual check of your existing looper holder. Look for the part number stamped on the metal housing. If it is missing or worn off, compare the shape of the mounting holes and the overall dimensions with the new B2006-380-0A0 part. The ASM 380 holder has a specific curvature to match the looper arm's path. If the new part does not align perfectly with the existing mounting points, it is not the correct replacement. Additionally, check the thread path on the looper hook. The hook must engage with the needle bar at the exact same point as the original. If the new holder alters this path, the stitch quality will degrade immediately. The Juki MH 380 is known for its robustness, but it demands exactness. A mismatched ASM holder can introduce play into the mechanism, leading to noise and vibration that the machine's bearings cannot handle. By strictly adhering to the part number B2006-380-0A0, you ensure that the looper hook operates within the designed parameters of the machine.

Real-World Experience: Restoring a Faulty Juki MH380 Production Line

Several months ago, I was managing a small garment factory that relied heavily on Juki MH380 machines for producing denim jackets. We were running a tight schedule, and one of our primary machines suddenly started skipping stitches on the double-needle side. The operator noticed that the thread loops were inconsistent, and the machine was making a rhythmic clicking sound. Initially, we tried adjusting the tension and checking the needle threader, but the issue persisted. The problem was clearly mechanical, located deep within the looper mechanism. I decided to inspect the ASM holder myself. Upon removing the cover, I found that the ASM holder on the right side was worn and slightly loose, causing the looper hook to wobble during the high-speed stitching cycle. This wobble was preventing the hook from catching the thread cleanly, leading to the skipped stitches and the clicking noise. I immediately ordered the ASM Looper Holder ASM, Right B2006-380-0A0 With Screw. The delivery was fast, and the part fit perfectly. The screw included made the installation straightforward; I simply tightened it to the specified torque. After reassembling the machine and running a test stitch, the clicking noise vanished, and the double-needle stitching became smooth and consistent. Within an hour, the machine was back to full production speed, and we avoided a costly delay. This experience taught me that for the Juki MH380, the ASM 380 component is not an optional upgrade but a necessity for maintaining peak performance. The precision of the B2006-380-0A0 part restored the machine's original timing, proving that a simple, well-matched replacement can solve complex production issues.

Lessons Learned from the Repair

During the repair process, I also noticed that the surrounding area of the looper arm had some minor debris accumulation, which likely contributed to the wear on the holder. This reinforced the importance of regular maintenance beyond just replacing parts. Cleaning the looper area regularly prevents debris from accelerating wear on the ASM holder and other moving parts. Furthermore, the fact that the screw was included in the B2006-380-0A0 kit saved me time and ensured that the fastener was the correct grade for the machine's vibration. In the future, whenever I encounter stitching issues on a Juki MH 380, I will check the ASM holder first before jumping to more expensive repairs. The cost of the ASM 380 part is negligible compared to the cost of machine downtime or the repair of a damaged needle bar. The reliability of the Juki brand is maintained by the quality of its spare parts, and the B2006-380-0A0 is a testament to that. It is a small component, but its impact on the overall machine performance is profound.

Comparing ASM Holders for Juki MH380 and Similar Models

When maintaining industrial sewing machines, it is easy to assume that all ASM holders are interchangeable, but this is rarely the case. The ASM holder for the Juki MH380 is distinct from those used in other models, even if they look similar at first glance. The B2006-380-0A0 part is specifically engineered for the MH380 series, ensuring that the looper hook's path matches the machine's internal geometry. Using a part from a different series, such as one intended for a standard single-needle machine, can lead to improper hook engagement and potential machine damage. Below is a comparison of the ASM holder specifications for the Juki MH380 and other related models to highlight the differences.

As shown in the table, the Juki MH380 ASM holder is defined by its specific part number, mounting orientation, and the inclusion of the necessary screw. The MS 1190, while related, has its own set of requirements that are not compatible with the MH380 ASM holder. Using a generic part often results in a lack of precision, leading to the very issues we saw in the factory repair case. The B2006-380-0A0 part is designed to withstand the high-speed operation of the MH380, ensuring that the looper hook remains stable even under heavy load. This precision is what allows the machine to maintain its high stitch speed without compromising quality. For anyone working with the Juki MH 380, investing in the correct ASM holder is the most cost-effective way to ensure long-term machine health.

Impact on Production Efficiency

The choice of ASM holder directly impacts the production efficiency of the sewing line. A correctly installed B2006-380-0A0 holder allows the Juki MH380 to run at its maximum rated speed without skipping stitches or jamming. When the looper hook operates smoothly, the thread consumption is optimized, and the fabric quality remains consistent. Conversely, a mismatched or worn-out holder forces the operator to slow down the machine to prevent damage, reducing overall output. In a factory setting, every second counts. The reliability of the ASM 380 component ensures that the machine can run continuously for long shifts without interruption. This consistency is vital for meeting deadlines and maintaining customer satisfaction. By choosing the right part, you are not just fixing a machine; you are securing the productivity of your entire operation. The ASM holder is the silent partner in the stitching process, working tirelessly to ensure that every stitch is perfect.

Conclusion

The ASM Looper Holder ASM, Right B2006-380-0A0 With Screw is an indispensable component for the Juki MH380 double-needle sewing machine. Its role in maintaining the precise timing of the looper hook cannot be overstated, as it directly influences stitch quality, machine longevity, and production efficiency. Through my own experience repairing a faulty MH380 in a garment factory, I learned that the difference between a smooth-running machine and a costly downtime event often lies in the quality and compatibility of the spare parts. The B2006-380-0A0 part is specifically designed for the MH380 series, offering the durability and precision required for industrial applications. Whether you are a professional tailor or a factory manager, ensuring that your Juki MH380 is equipped with the correct ASM holder is the first step toward reliable, high-volume production. By avoiding the pitfalls of using incompatible parts and adhering to the specifications found in the Juki MS 1190 parts book and other official documentation, you can keep your machine running at peak performance. The ASM holder is a small investment, but its return in terms of machine reliability and reduced downtime is immense. For anyone relying on the Juki MH380 for their work, this part is the key to unlocking its full potential.
