Pneumatic Single Solenoid Valve, 5 Way, 12V/24V/110V/220V

5 out of 5 based on 2 reviews | Write a review

$49.59

~~Old price: $55.55~~

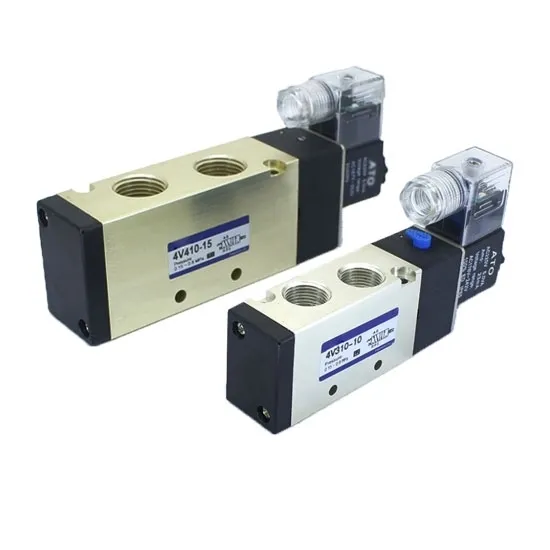

Favorable price 5 way 2 position (5/2-way) pneumatic single solenoid valve, applied for the air control, internal pilot operated, optional input voltage 12V DC, 24V DC, 110V AC and 220V AC and port size M5×0.8, Rc 1/8", 1/4", 3/8", 1/2", high reliability and long life time.

Model *

ATO-4V110-M5 ATO-4V110-06 ATO-4V210-06 [+$3.38] ATO-4V210-08 [+$3.38] ATO-4V310-08 [+$4.78] ATO-4V310-10 [+$4.78] ATO-4V410-15 [+$12.00]

Voltage (V) *

12V DC 24V DC 110V AC 220V AC

SKU: ATO-VALVE-4VS

30-day Returns

Free Shipping

Delivery date: 6-12 days

Note: This solenoid valve cannot be used for drinking water.

With working voltage of DC 12 volt, DC 24 volt, AC 110 volt or AC 220 volt, Pneumatic solenoid valve features five-way two-position, single solenoid acting, fast and safe switching, and it is widely applied for air control in the chemical, petroleum, pharmaceutical, automotive, light industry, food, mineral processing, electroplating, metallurgy, textiles and other industrial areas.

Specification

Model	ATO-4V110-M5	ATO-4V110-06	ATO-4V210-06	ATO-4V210-08	ATO-4V310-08	ATO-4V310-10	ATO-4V410-15
Number of Ports	5-way
Number of Positions	2-position
Operation Mode	Internally Pilot Operated
Number of Solenoid	Single
Port Size	M5×0.8	Rc 1/8"	Rc 1/8"	Rc 1/4"	Rc 1/4"	Rc 3/8"	Rc 1/2"
Media	Air
Operating Pressure Range	0.15~0.8MPa (22~116PSI)
Max. Pressure Resistance	1.2MPa
Voltage (Optional)	12V DC, 24V DC, 110V AC, 220V AC
Dimensions	See below table
Voltage Tolerance	-10%~+10%
Operating Temperature	5℃~60℃ (41℉~140℉)
Insulation Grade	Class B
Protection Grade	IP65
Body Material	Aluminum Alloy
Seal Material	NBR
Wiring Method	Terminal type
Max. Action Frequency	5Hz (5 cycles/second)
Lubrication	No

Flow Characteristics

5 way pneumatic single solenoid valve flow characteristics Dimensions

(body length unit = mm, port size unit = inch)

5/2-Way Pneumatic Single Solenoid Valve Dimensions

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	V
4V110-M5	13.2	30	14	21.2	M5×0.8	0	Φ3.3	27	Φ3.3	14	2.5	99.4	21.2	55	9.5	13	18	M5×0.8	14.7	27	28.2	0
4V110-06	13.2	30	16	20.2	PT1/8	3	Φ3.3	27	Φ3.3	14	2.5	99.4	21.2	55	9.5	13	18	PT1/8	14.2	28	28.2	1
4V210-06	12.7	38	18	22.7	PT1/8	0	Φ3.2	35	Φ4.3	20	3	117	21.7	66.7	10.5	17	22	PT1/8	13.7	36	31.7	0
4V210-08	12.7	38	21	21.2	PT1/4	3	Φ3.2	35	Φ4.3	20	3	117	21.7	66.7	10.5	17	22	PT1/8	13.7	36	31.7	0
4V310-08	15	50	22	29	PT1/4	0	Φ4.3	40	Φ4.3	24	2.4	135	28	69.2	13.5	20	27	PT1/4	17.5	45	40	0
4V310-10	15	50	24	28	PT3/8	4	Φ4.3	40	Φ4.3	24	2.4	135	28	69.2	13.5	20	27	PT1/4	17.5	45	40	0
4V410-15	21	72	36	39	PT1/2	4	Φ4.3	50	Φ5.5	28	2.8	168.4	43	74.2	17.5	27	34	PT1/2	25.5	63	57	0

5/2-Way Single Solenoid Valve Symbol (Flow Diagram)

Tips: How does a solenoid valve work?

The solenoid valve has an enclosed chamber inside and ventilated holes in different positions. Every hole is connected with different oil pipes. The chamber has a piston in the middle. The two sides are two pieces of electromagnets. The electrifying magnetic coil will attract the valve body to its side, so that different oil outlets will be opened or closed through controlling the movement of the valve body. However, the oil inlet is constantly open. The hydraulic oil will enter into different draw-off pipes. The oil pressure will be used to drive the piston of the oil cylinder, which will drive the piston rod and then the mechanical device. In this way, through controlling the current of the solenoid valve, the mechanical movement will be controlled.
